30W/50W/100W/150W/200W led 路灯

产品参数

30W/50W/100W/150W/200W led street light

1. Die-casting aluminum radiator, excellent heating dissipation;

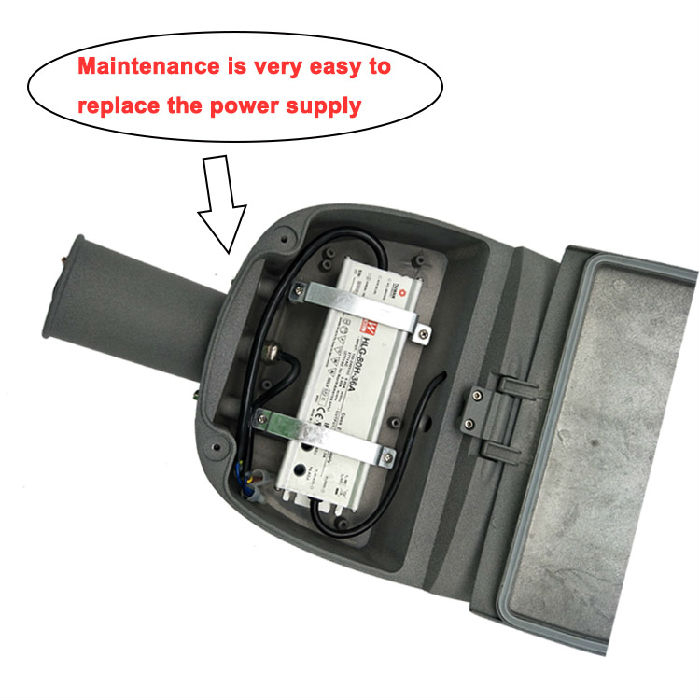

2. Tool free maintenance, the back cover can be opened to check or replace driver very easily;

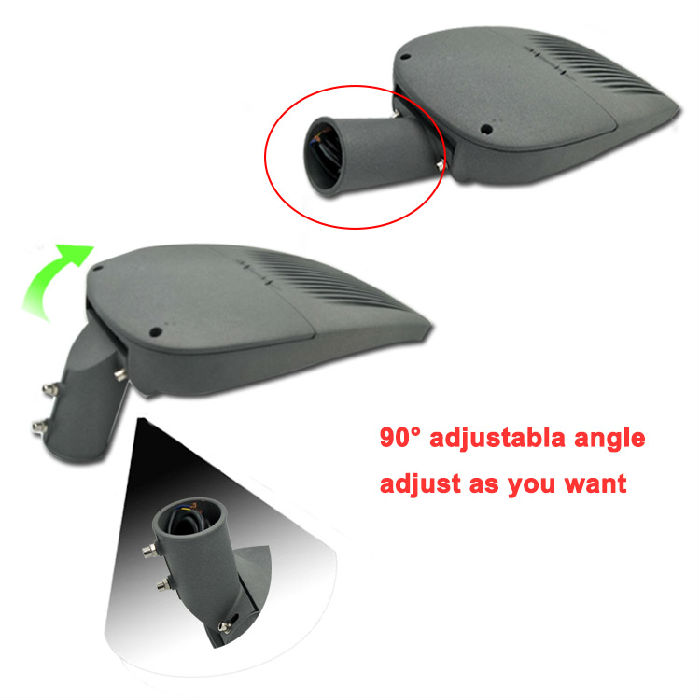

3. Mounting angle adjustable, suitable for horizontal poles or vertical poles.
4. Wide-range input voltage, AC100-277V.

Model NO	JW-ST50W-A	JW-ST80W-A	JW-ST100W-A	JW-ST150W-A	JW-ST200W-A
Luminous Efficacy	120lm/w	120lm/w	130lm/w	120lm/w	120lm/w
LED Qty	72pcs	96pcs	180pcs	180pcs	240pcs
Dimension	507210130mm	616259186mm	677305187mm	677305187mm	850366198 mm
CCT	3000K, 4000K, 5000K, 6000K
CRI	>80Ra
Power Factor	0.95PF
Input Voltage	AC90-305V/347V/480V
IP Rating	IP67
Warranty	5 year
