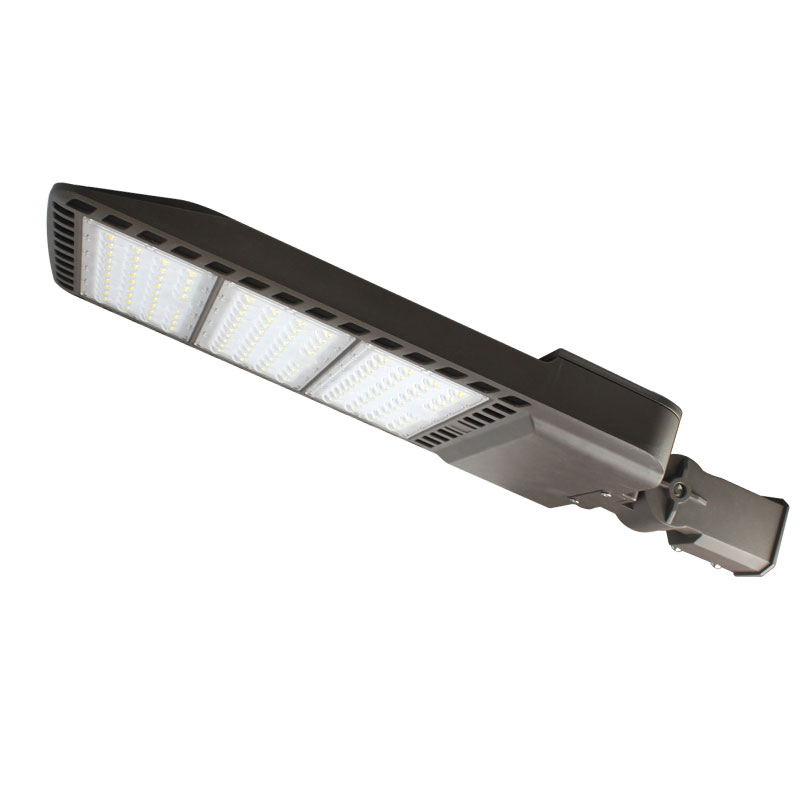

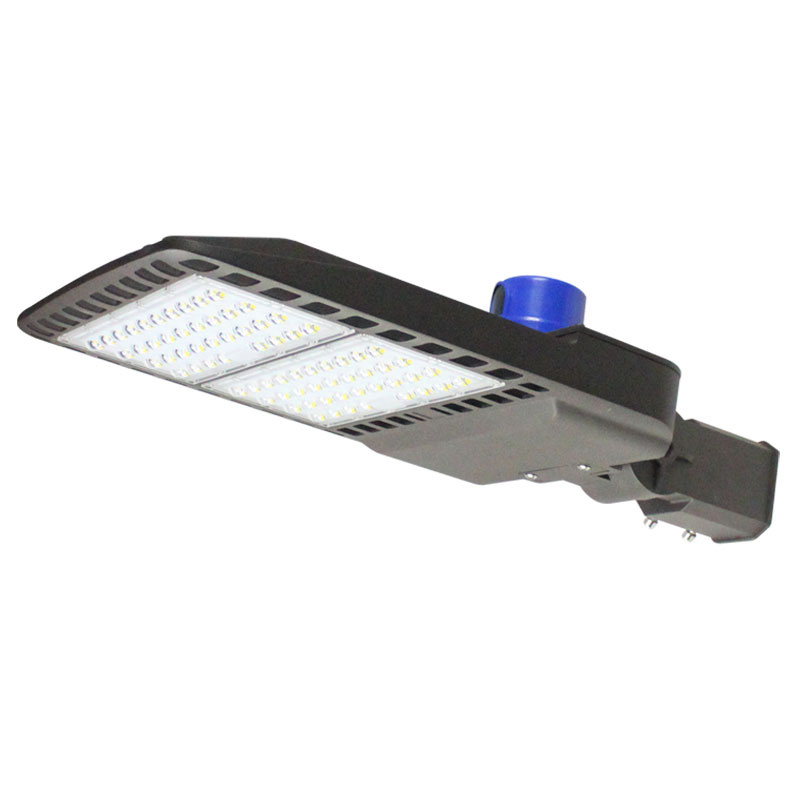

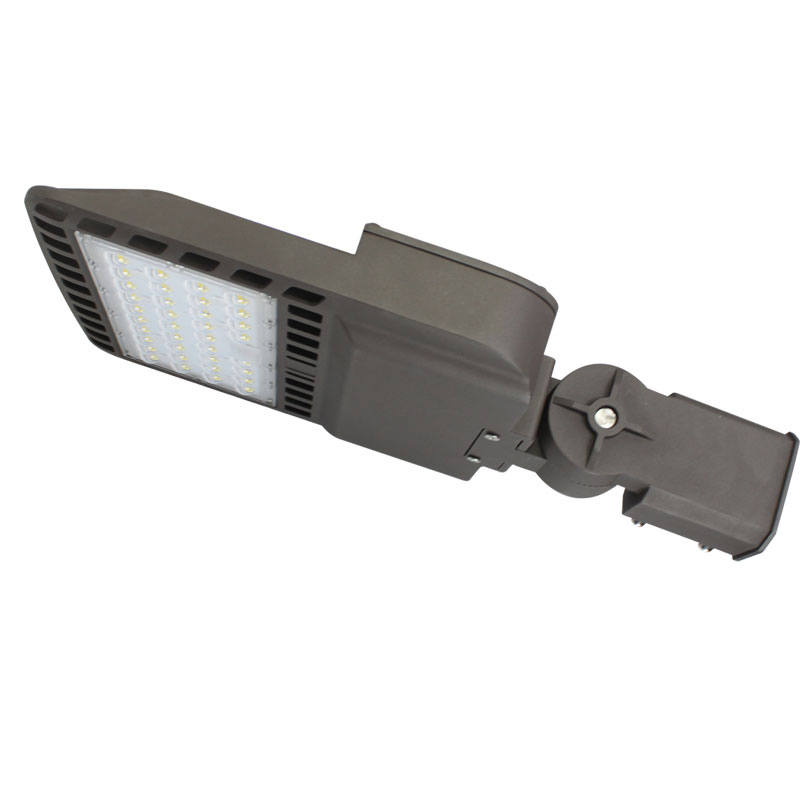

100W/150W/200W/300W LED street light

100W/150W/200W/300W LED street light

100W/150W/200W/300W LED street light

the Product Parameters



2018 new lighting product led street light, led parking lot light

.Hollow out heat sink makes the lamp lighter and better at heat dissipation.

.High Lumen SMD 3030 LED chip 130m/w or 150lm/w

.Snap-in power cover, easier and faster to install

.High efficient light with significant energy and cost savings.

.Varieties of installation fittings for different applications

.Light distribution Type II Type III Type IV Type V.



Model NO

JW-ST100W-B

JW-ST150W-B

JW-ST200W-B

JW-ST250W-B

JW-ST300W-B

Luminous Efficacy

130lm/w:150lm/w

130lm/w;150lm/w

130lm/w;150lm/w

130lm/w;150lm/w

130lm/w;150lm/w

Lumen Output

13000lm/15000lm

19500lm/22500lm

26000lm/30000lm

32500lm/37500lm

39000lm/45000lm

LED Qty

144pcs/168pcs

216pcs/288pcs

288pcs/336pcs

378pcs/432pcs

432pcs/504pcs

Dimension

369*305*65mm

490*305*65mm

490*305*65mm

611*305*65mm

611*305*65mm

CCT

3000K, 4000K, 5000K, 6000K

CRI

>80Ra

Power Factor

0.95PF

Input Voltage

AC90-305V/347V/480V

IP Rating

IP67

Optical Lens

Type II Type III Type IV Type V

Warranty                                                  5 year

300W_10.jpg300W_02.jpg300W_04.jpg300W_05.jpg300W_06.jpg300W_07.jpg300W_08.jpg300W_09.jpg

_10.jpgApplications:
